10W-50W Ceramic Cement Power Resistor 100PPM RoHS Compliant

Brand Name : JDC

Model Number : SQH

Certification : ROHS

Place of Origin : CHINA

MOQ : 1000PCS

Price : US$0.15/PCS-US$0.65/PCS

Payment Terms : T/T, L/C, Western Union, Paypal

Supply Ability : 500Kpcs per Month

Delivery Time : 7-10 working days

Packaging Details : Bulk in blister & Carton

Rated Power : 10W-50W

Resistance Range : 1R-150K

TCR : 100PPM

Contact Now

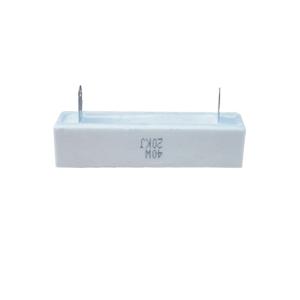

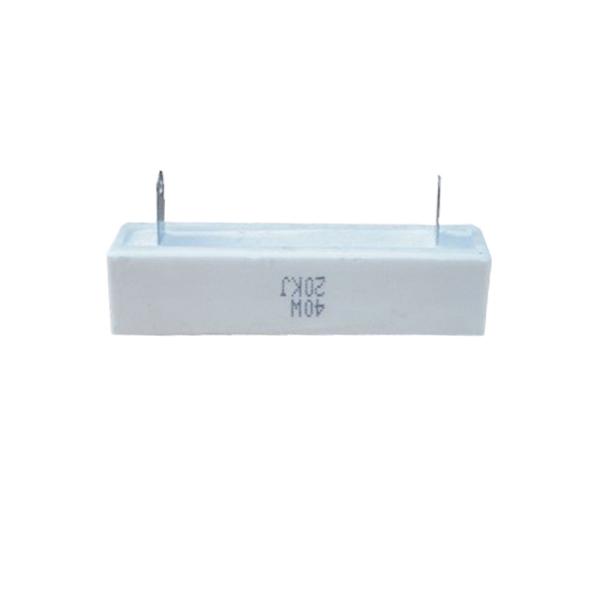

SQH Ceramic Encased Wirewound Resistors

Features:

Wide Range of resistance
Low TCR available
High Tolerances available
RoHS Compliant
Custom Built Design and values available

Descriptions:

With rated power from 10W to 50W, SQH ceramic encased wirewound resistor are widely used in electronic product and motor blower control. Resistance range from 0.1R-150K, and max working voltage is up to 700V.

Dimensions:

Type	Dimension (mm)								Resistance Range (Ω)		Max Working Voltage
SQH	W±1	H±1	L±1.5	P±1	H1±1	D±0.5	P1±0.2	P2±0.2	SQH	RS+SQH	Max Working Voltage
10W	10	9	48	32	21	5	2.5	2	0.1~500	500~50K	500V
15W	12.5	11.5	48	32	21	5	2.5	2	1~1K	1K~150K	600V
20W	14.5	13.5	60	43	24	6	3.0	2.5	1~2K	2K~150K	700V
30W	19	19	75	56	29	6	3.0	2.5	1~2K		700V
40W	19	19	90	67	29	6	3.0	2.5	2~3K		700V
50W	19	19	90	67	29	6	3.0	2.5	2~3K		700V
